Custom High-Quality Solid-Insulated Switchgear with IP54 Protection and SF6 Gas Chamber for Industrial Automation

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

CE,UL

Εφαρμογή:

Εξωτερική, Βιομηχανική, Ηλεκτρική Μεταφορά

Αριθμός φάσης ισχύος:

Αδιάβροχο κουτί διανομής

Ονομαστική τάση:

220V/380V

Συσκευασία λεπτομέρειες:

ξύλινη θήκη

Δυνατότητα προσφοράς:

10.000 τεμάχια το μήνα

Επισημαίνω:

Περιγραφή του προϊόντος

Custom High-Quality Smart Solid-Insulated Switchgear

Advanced high-voltage insulated switchgear with PLC control cabinet capabilities for industrial automation and programmable logic controller systems.

Product Specifications

Application	Industrial automation control systems
Rated Current	Customized
Number of Sockets	Customized
Rated Voltage	110V, 240V, 380V, 480V, Customized
Type	PLC Control Cabinet, Industrial Automation Control Panel, Programmable Logic Controller System Cabinet
Model Number	HXGN15-12(SF6)
IP Level	IP54
AC/DC Voltage	Customizable for global voltages (110V-480V, 50/60Hz)
Protection Rating	Standard IP54 / Higher IP ratings available (IP55, IP65, IP66)
Cabinet Material	Carbon steel (other materials available upon request)
Cabinet Dimensions	Fully customizable based on customer drawings and component layout
Communication	RS485, Modbus RTU/TCP, Ethernet, CAN, Profibus, etc.
I/O Capacity & Expandability	Flexible I/O points (up to thousands), DI/DO, AI/AO & special modules
Electrical Component Grade	Top-tier components with optional brand selection
Control Functions	Multi-domain control (logic, process, motion, SCADA/HMI)
Customization Service	OEM/ODM Supported
Application Industries	Industrial Automation, Process Control & New Energy

Key Features & Benefits

Environmentally resilient operation - sealed shell protects against moisture, pollution, corrosive gases, steam, dust, and small animals
Enhanced safety and reliability - busbar located in SF6 gas chamber with insulated plug-in solid busbar connections
Prevents interphase failures - resin-cast seals and insulated single-phase fuses installed outside housing
Easy installation and expansion - no on-site SF6 inflation work required
Modular single cabinet fully enclosed structure - factory or on-site combination available
Superior construction - aluminum-zinc plate cabinet body processed by CNC machine tools for excellent air tightness and reliability
Compact design - minimal space requirements with robust performance

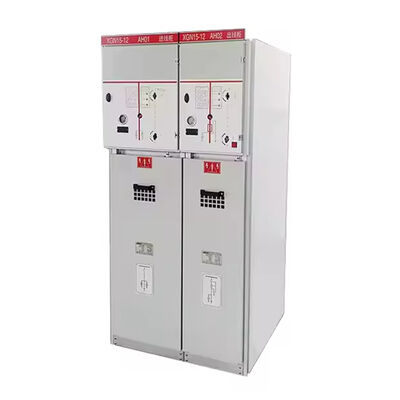

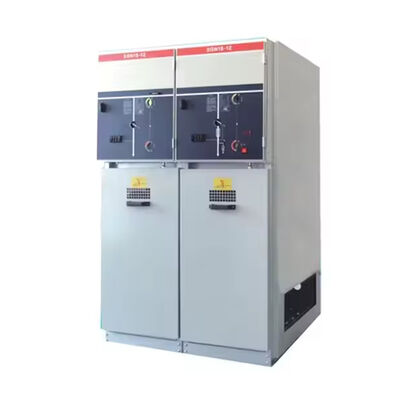

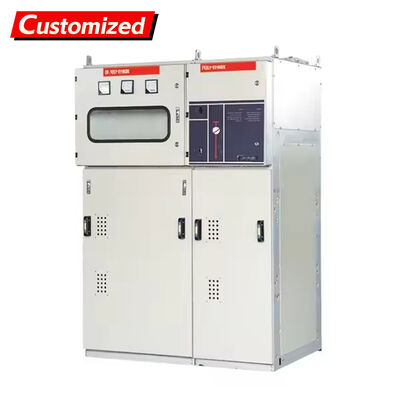

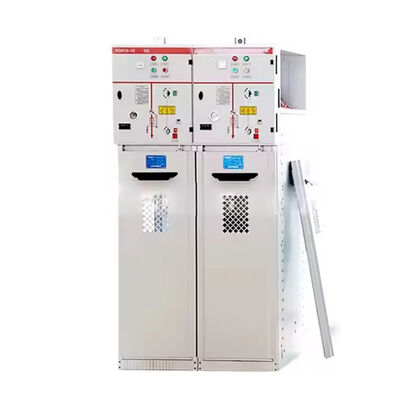

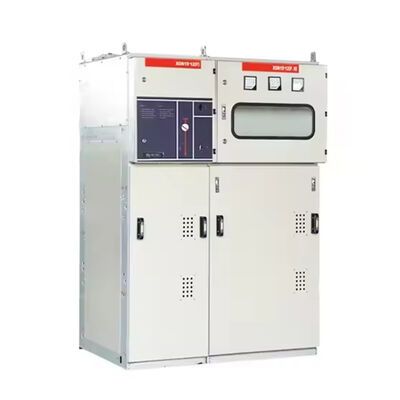

Product Images
