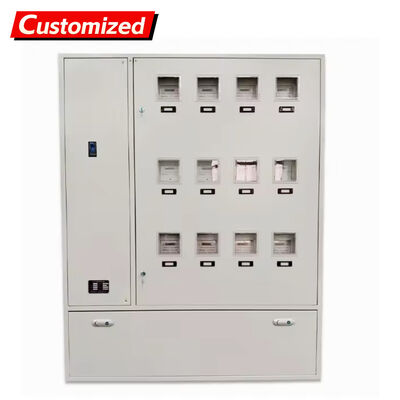

Custom IP65/IP66-rated Power Distribution Panel and Electrical Enclosure with 220V/380V Nominal Voltage

Custom IP65/IP66-rated Power Distribution Panel and Electrical Enclosure with 220V/380V Nominal Voltage

Ονομασία μάρκας:	WeSeW
Τροποποιημένο:	1 τεμ
τιμή:	US$200~US$1000/pc
Όροι πληρωμής:	T/T, Western Union
Ικανότητα εφοδιασμού:	10.000 τεμάχια το μήνα

Πληροφορίες λεπτομέρειας

Περιγραφή του προϊόντος

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

CE,UL

Εφαρμογή:

Εξωτερική, Βιομηχανική, Ηλεκτρική Μεταφορά

Αριθμός φάσης ισχύος:

Αδιάβροχο κουτί διανομής

Ονομαστική τάση:

220V/380V

Συσκευασία λεπτομέρειες:

ξύλινη θήκη

Δυνατότητα προσφοράς:

10.000 τεμάχια το μήνα

Επισημαίνω:

IP65/IP66-rated Power Distribution Panel

Customizable Electrical Enclosure

220V/380V Metal Cabinet

Περιγραφή του προϊόντος

Custom IP65/IP66-Rated Control and Power Distribution Metal Enclosures

Complete sets of power distribution cabinets, sheet metal parts riveting assembly, and sheet metal parts bending. We undertake large and high-capacity production line assembly parts production.

Product Name	Sheet Metal Processing
Style	Sheet Metal Customization
Brand	Nam Billion
Colour	Customizable, White, Blue-White, Matte Beige

Equipment Classification and Suitable Scenarios

Stage distribution boxes are primarily categorized into fixed and mobile types. Fixed distribution boxes are permanently installed on walls or bases, meeting seismic and heat dissipation requirements, and are suitable for permanent performance venues such as theaters and concert halls. Mobile distribution boxes, exemplified by flight case distribution cabinets, feature sliding wheels and double-layer shockproof structures for quick installation and removal. They are ideal for temporary scenarios like music festivals and touring performances. Some models offer customizable output specifications based on requirements.

Core Performance and Safety Configuration

Load Capacity and Protection Standards

Select distribution boxes with rated currents exceeding total equipment power by 20%
Single-box load must not exceed 80% of rated capacity
Protection ratings must match usage environments—outdoor performances require IP54 or higher
Equipped with residual current devices (RCDs) with action currents ≤30mA
Grounding resistance ≤4Ω

Component and Wiring Standards

Use switchgear components from brands like Chint or Delixi
Main circuits employ copper-core conductors
Separate distribution cables from low-voltage lines to prevent signal interference and safety hazards
Temporary overhead lines must be ≥2.5m above ground (≥5m over vehicular traffic lanes)
Buried lines require ≥0.7m depth

Management and Operation Requirements

Qualifications and Approval
